Particle Identification Test Rig

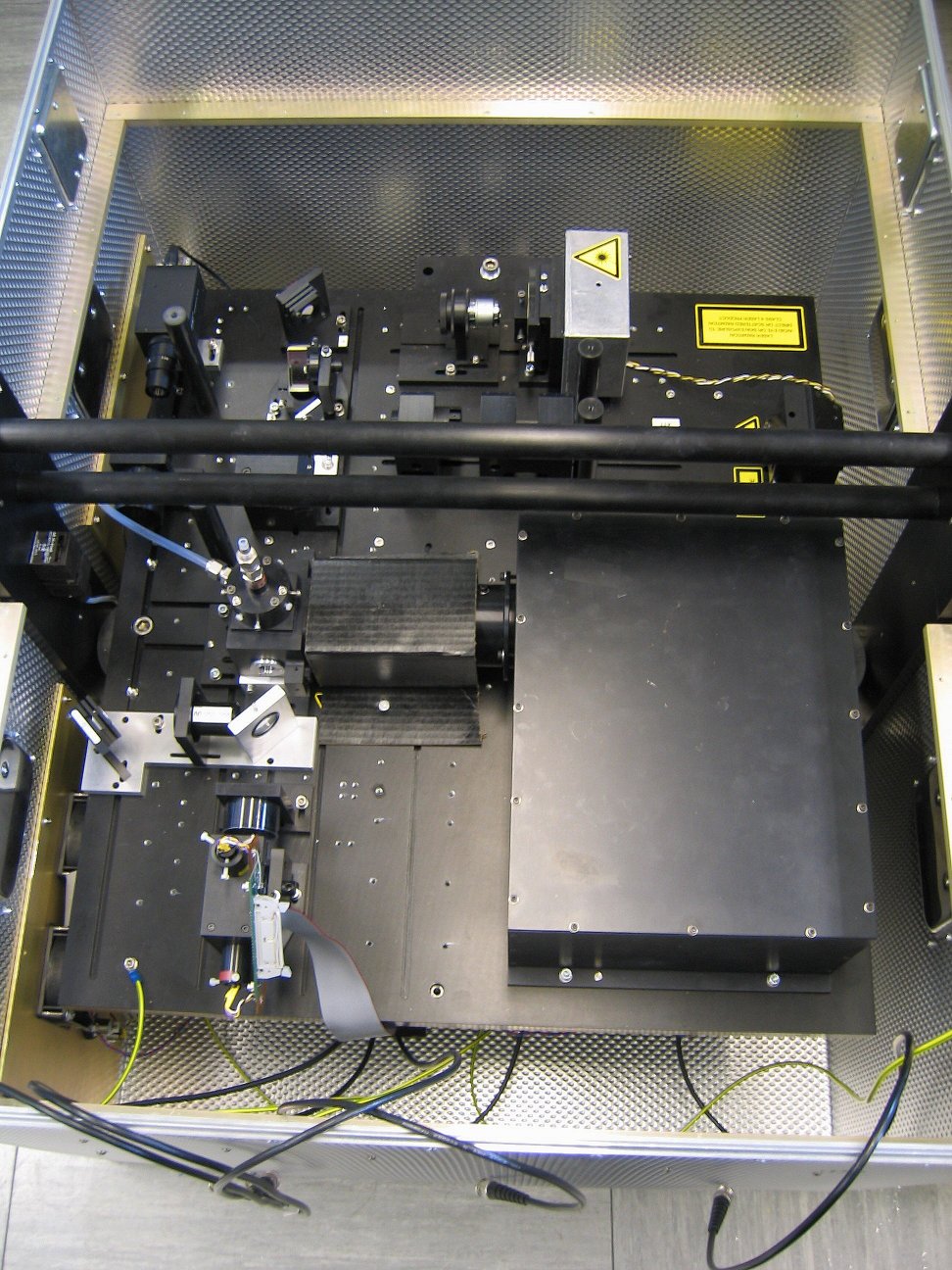

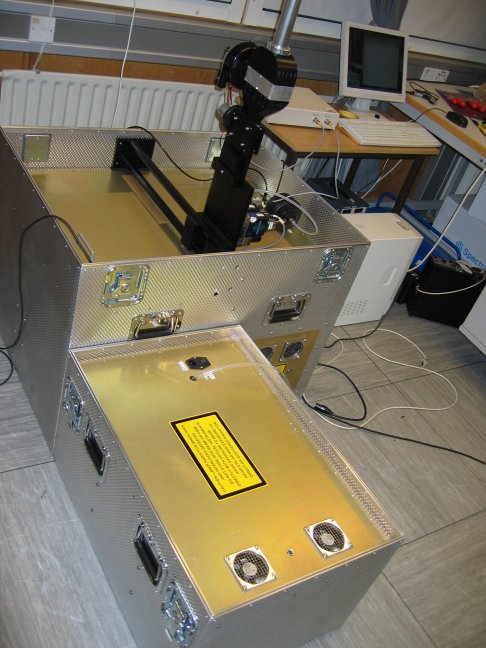

This unit sucked in samples of air and extracted particles of around 10 microns using a virtual impactor. These were then carried through the path of a laser beam and the resulting burst of energy measured to identify the material of the particle. This unit was designed to be modular and robust to enable field use.


sif1

sif2

sif3
